HLS-HS STRAIGHT

Loading ramps

HLS-HS STRAIGHT

Max. loading capacity per pair: 1.000 kg

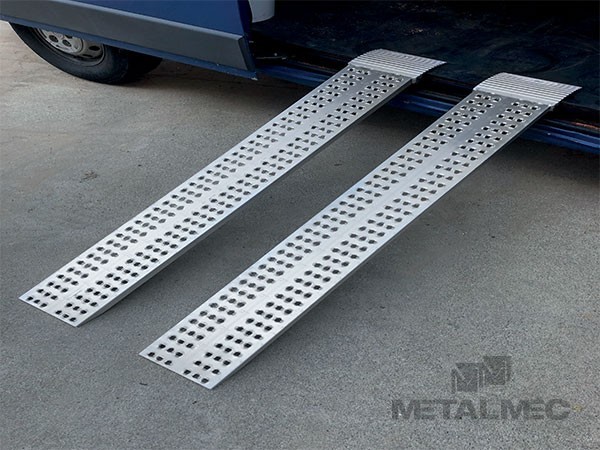

This range of products has been conceived, developed and manufactured for all users who need to combine good loading capacity with a lightweight, easy-to-handle product for non-professional applications. The unique holes in the aluminium profile give the ramps both outstanding grip and the ability to easily drain troublesome elements such as water and snow. The features of these products are particularly beneficial in the DIY/hobby sector, lending themselves to any loading or unloading work involving equipment with rubber wheels, such as hand-pushed trolleys, lawnmowers, motorcycles, quad bikes, etc. The curved range provides the same performance as the straight range, but is particularly suitable for use with vehicles that have limited space between their underside and the ground (often due to having small wheels), allowing the user to clear heights of up to 900 mm without obstruction.

Product Sectors:

HLS-HS STRAIGHT
Loading capacity per pair kg

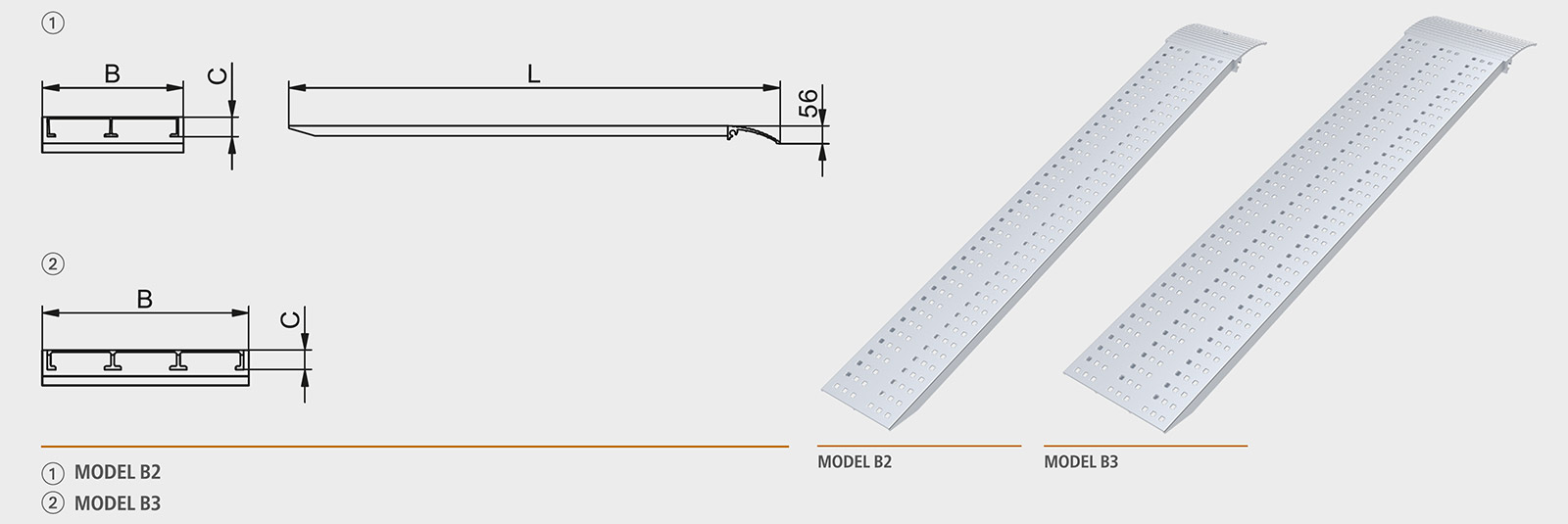

Model Item code Wheelbase 0 mm Wheelbase 500 mm Wheelbase 750 mm Wheelbase 1000 mm Wheelbase 1250 mm Length L mm External width B mm Height of ramp profile C mm Min./max. loading height Weight per pair kg
M030B2HLS/15MM010S0.20.15350425500600600150021530350 / 4508,0
M030B2HLS/20MM010S0.20.20230280350400500199021530460 / 60010,0
M030B2HS/15MM012S0.20.15500600650700700150021530350 / 45010,5
M030B2HS/20MM012S0.20.20400550600650700199021530460 / 60014,0
M030B3HS/15MM014S0.30.158001000100010001000150031530350 / 45016,0
M030B3HS/20MM014S0.30.2065078090010001000199031530460 / 60021,0
M030B3HS/25MM014S0.30.255006007008001000251031530610 / 75026,0
M040B3HS/30MM016S0.30.3070080090010001000300031540760 / 90036,0

Anchoring Systems

Aluminium tab (on request):

The advantage of this anchoring system lies in the fact that the tab can be positioned along a large portion of the ramp's width, and can turn inside the head connection into which it has been inserted. The system comes with end caps for the head to prevent the tab disconnecting from the ramp during use.

Steel pin (on request):

A galvanised steel pin with a diameter of 14v mm and a 24-mm-diameter head can be inserted through the holes in the standard head connection of the ramp and the loading bed.

Handling Systems

Nylon handles (on request):

The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected. Recommended nylon handles for manual handling: 4 pcs each ramp. Recommended nylon handles for handling by lifting equipment: 2 pcs minimum each ramp.
