loading ramps
M050
Max. loading capacity per pair:
1.500 kg
These aluminium ramps offer an excellent compromise between high load capacity and low weight. They are robust, easy to handle and have a non-slip surface, obtained through coining. With an internal width of 155 mm and
45 mm high raised containment edges, these ramps are particularly suitable for the safe loading and unloading of motorcycles, electric generators, compressors and other items of equipment. To optimise transport, this range of ramps can be supplied either as the hinged, folding version or as the bayonet coupling version.
With the hinged, folding version, the loading capacity reduces to 300 kg per pair for all lengths.
Product Sectors:
| Loading capacity per pair kg | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|

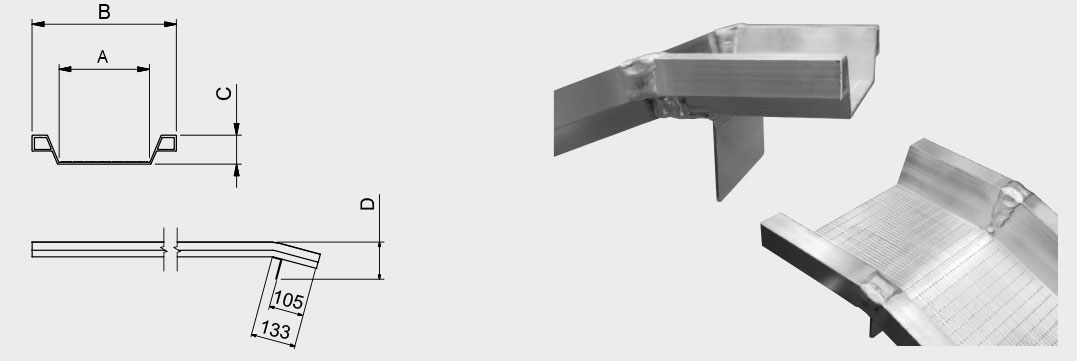

| Model | Item code | Wheelbase 0 mm | Wheelbase 500 mm | Wheelbase 1000 mm | Length mm | Internal width A mm | External width B mm | Height of raised edge C mm | Overall ramp dimensions D mm | Weight per pair kg |
| M050/10 | MM050B0.25.10 | 800 | 1500 | 1500 | 1000 | 155 | 246 | 45 | 100 | 9 |
| M050/15 | MM050B0.25.15 | 800 | 1479 | 1500 | 1500 | 155 | 246 | 45 | 100 | 13 |
| M050/20 | MM050B0.25.20 | 739 | 986 | 1479 | 2000 | 155 | 246 | 45 | 100 | 17 |
| M050/25 | MM050B0.25.25 | 532 | 665 | 887 | 2500 | 155 | 246 | 45 | 100 | 20 |
| M050/30 | MM050B0.25.30 | 419 | 503 | 628 | 3000 | 155 | 246 | 45 | 100 | 24 |
| M050/35 | MM050B0.25.35 | 346 | 404 | 485 | 3500 | 155 | 246 | 45 | 100 | 28 |
With the hinged, folding version, the loading capacity reduces to 300 kg per pair for all lengths.
