loading ramps
M060B3

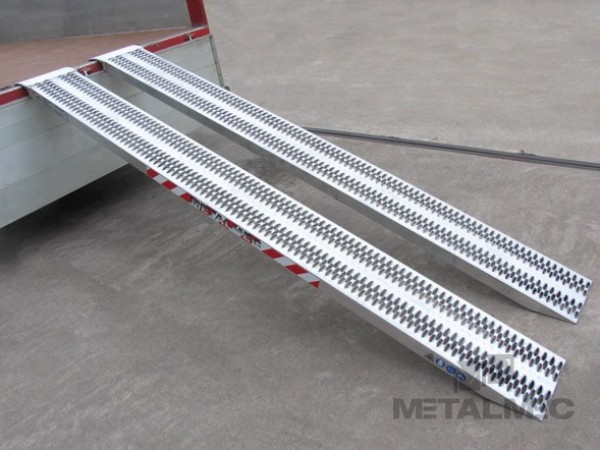

This range has been conceived to meet the needs of those who need to move heavy equipment and vehicles but also require a self-cleaning contact surface with excellent grip. The innovative, thin, extruded and cut profile used in the production of these ramps gives the product these characteristics that are particularly valued by light trailer manufacturers. Vehicles and equipment with rubber wheels or tracks can be moved in any weather conditions and in complete safety. The range is made without raised edges. Various types of head connection can be assembled on request and the product is supplied with the required anchoring tabs.
Product Sectors:
Head Types
| Loading capacity per pair kg | |||||||
|---|---|---|---|---|---|---|---|

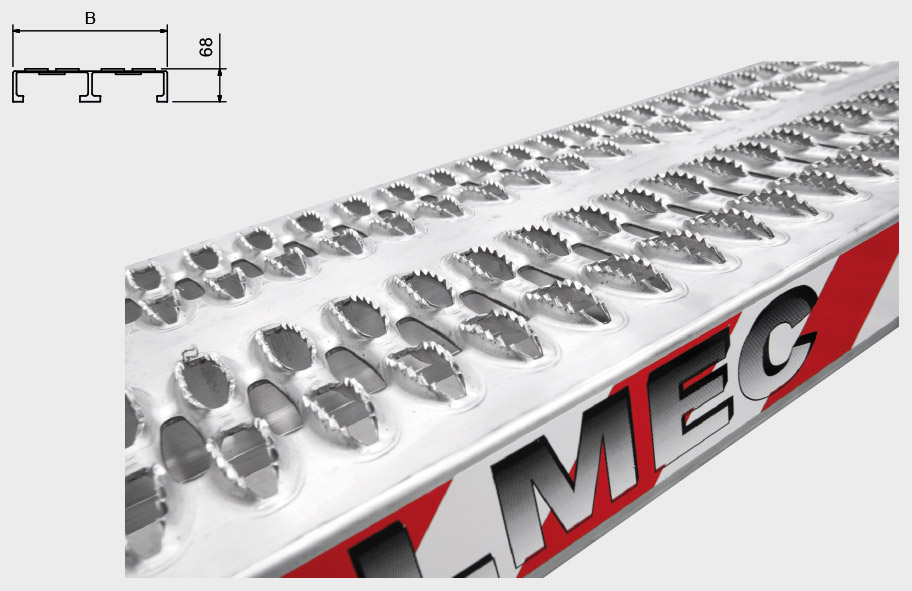

| Model | Item code | Wheelbase 1000 mm | Wheelbase 1250 mm | Wheelbase 1500 mm | Length mm | External width B mm | Weight per pair kg |
| M060B3/15 | MM060SL.30.15 | 4500 | 4500 | 4500 | 1500 | 315 | 22 |
| M060B3/20 | MM060SL.30.20 | 3300 | 3900 | 4500 | 2000 | 315 | 29 |
| M060B3/25 | MM060SL.30.25 | 2400 | 3000 | 3400 | 2500 | 315 | 33 |
| M060B3/30 | MM060SL.30.30 | 1705 | 2000 | 2250 | 3000 | 315 | 40 |
| M060B3/35 | MM060SL.30.35 | 1200 | 1350 | 1500 | 3500 | 315 | 47 |
| M060B3/40 | MM060SL.30.40 | 1000 | 1100 | 1200 | 4000 | 315 | 54 |
Minimum width of the wheel or track 150 mm.
Anchoring Systems
The advantage of this anchoring system lies in the fact that the tab can be positioned along a large portion of the ramp's width, and can turn inside the head connection into which it has been inserted. The system comes with end caps for the head to prevent the tab disconnecting from the ramp during use.
A galvanised steel pin with a diameter of 14v mm and a 24-mm-diameter head can be inserted through the holes in the standard head connection of the ramp and the loading bed.
Handling Systems
The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected. Recommended nylon handles for manual handling: 4 pcs each ramp. Recommended nylon handles for handling by lifting equipment: 2 pcs minimum each ramp.
