M105F

loading ramps

M105F

Max. loading capacity per pair: 29.000 Kg

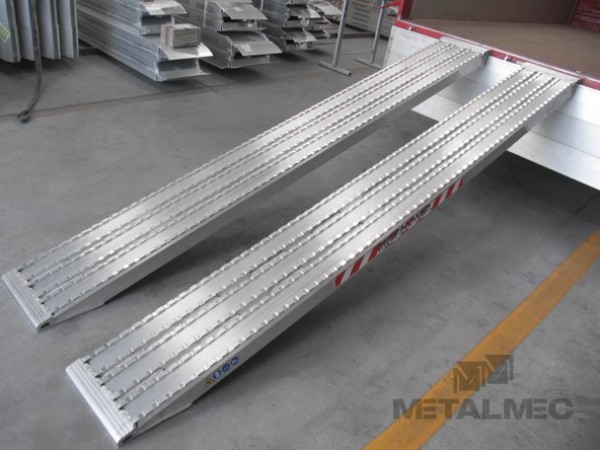

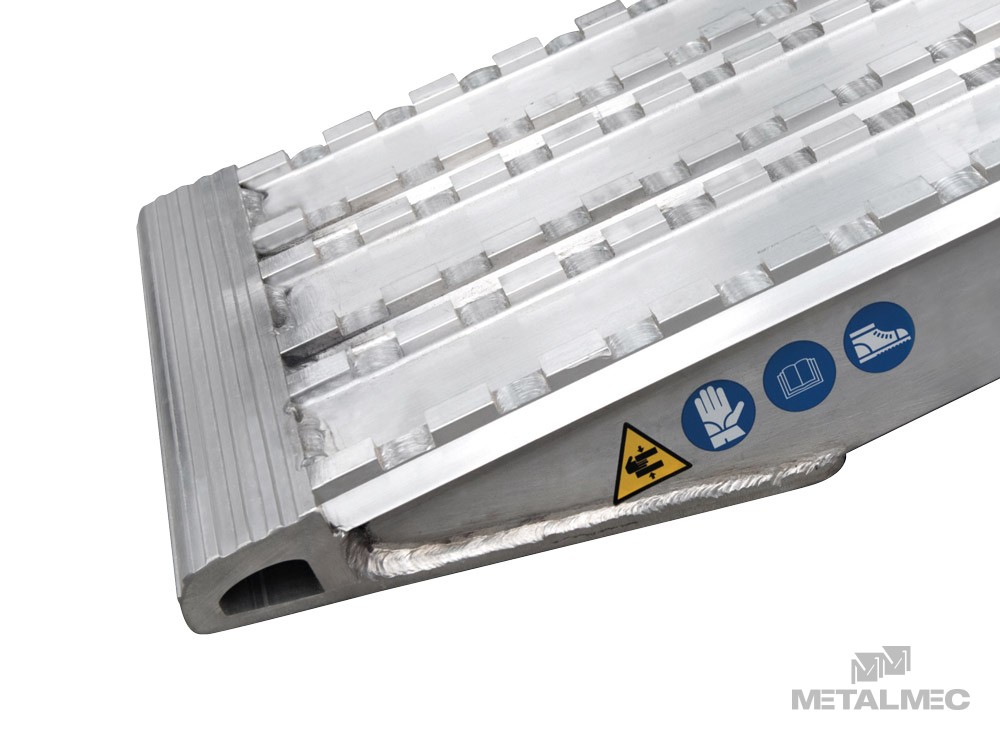

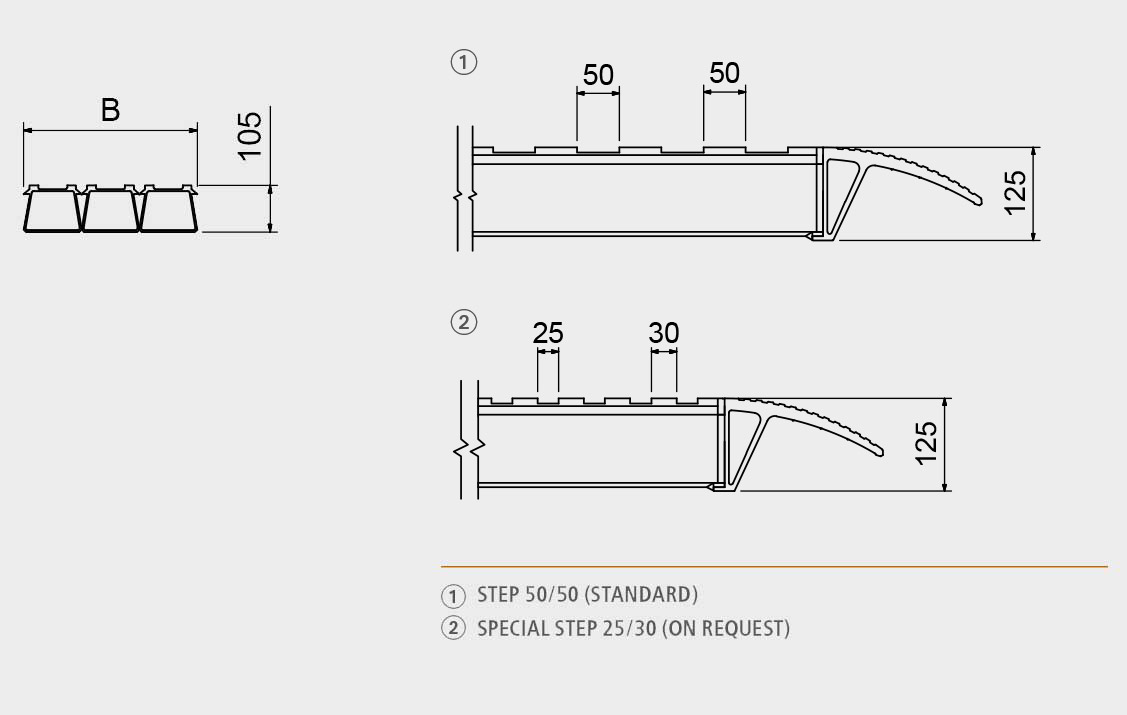

To meet the requirements of people who need to move vehicles with very heavy loads in complete safety, Metalmec has designed this range of products which, together with the profiles used and the mechanical processes implemented in their production, ensure excellent performance. The range comes milled in 50/50 mm steps as standard and is particularly suitable for moving heavy vehicles with steel tracks. On request, the product can be milled in short 25/30 mm steps should the user wish to move heavy vehicles with solid rubber wheels. Available in various widths and with different types of head connections, they are particularly valued by manufacturers of heavy trailers as they are perfectly suited to their needs. The range is made without raised edges and the product is supplied with the required anchoring chains.

Product Sectors:

M105F

Head Types

1

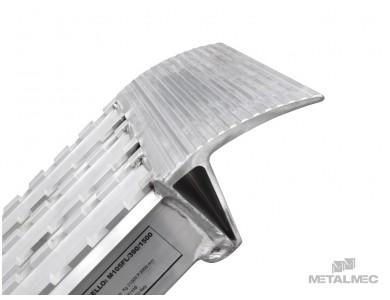

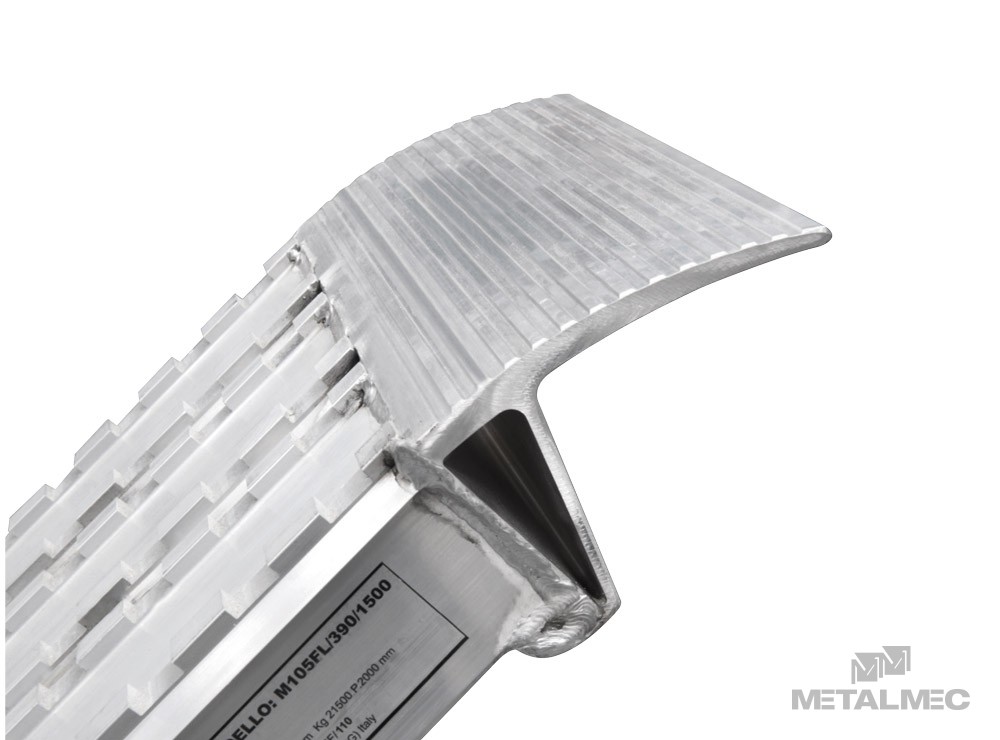

Standard Head (L)
Standard Head (L)
2
Head with hook (G) (on request)
Head with hook (G) (on request)
3
Head with support (A) (on request)
Head with support (A) (on request)
4
Head with tube (T) (on request)
Head with tube (T) (on request)
Loading capacity per pair kg
Model Item code Wheelbase 1000 mm Wheelbase 1500 mm Wheelbase 2000 mm Length mm External width B mm Weight per pair kg
M105F/390/1000MM105SL.39.10215002150021500100039041
M105F/390/1500MM105SL.39.15215002150021500150039057
M105F/390/2000MM105SL.39.20137202150021500200039073
M105F/390/2500MM105SL.39.2591451372018000250039089
M105F/390/3000MM105SL.39.3068609145137203000390105
M105F/390/3500MM105SL.39.355485686091453500390121
M105F/390/4000MM105SL.39.404575548568604000390137
M105F/390/4500MM105SL.39.453920457554854500390153
M105F/390/5000MM105SL.39.503430392045755000390168
M105F/520/1000MM105SL.52.10290002900029000100052055
M105F/520/1500MM105SL.52.15290002900029000150052076
M105F/520/2000MM105SL.52.20182902900029000200052098
M105F/520/2500MM105SL.52.251219518290220002500520119
M105F/520/3000MM105SL.52.30914512195182903000520140
M105F/520/3500MM105SL.52.3573159145121953500520161
M105F/520/4000MM105SL.52.406095731591454000520183
M105F/520/4500MM105SL.52.455225609573154500520204
M105F/520/5000MM105SL.52.504575522560955000520225

Anchoring Systems

Carabiner clip with steel chain (standard):

The steel chain must be hooked using the carabiner clip supplied to the loading bed, and must be inserted into the appropriate attachment system provided under the ramp’s driving surface.

Steel pin (on request):

A galvanised steel pin with a diameter of 14v mm and a 24-mm-diameter head can be inserted through the holes in the standard head connection of the ramp and the loading bed.

Handling Systems

Nylon handles (on request):

The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected. Recommended nylon handles for manual handling: 4 pcs each ramp. Recommended nylon handles for handling by lifting equipment: 2 pcs minimum each ramp.
