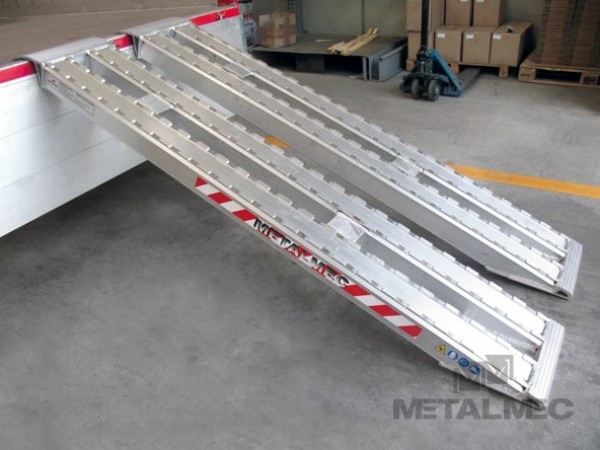

M120F

loading ramps

M120F

Max. loading capacity per pair: 29.000 Kg

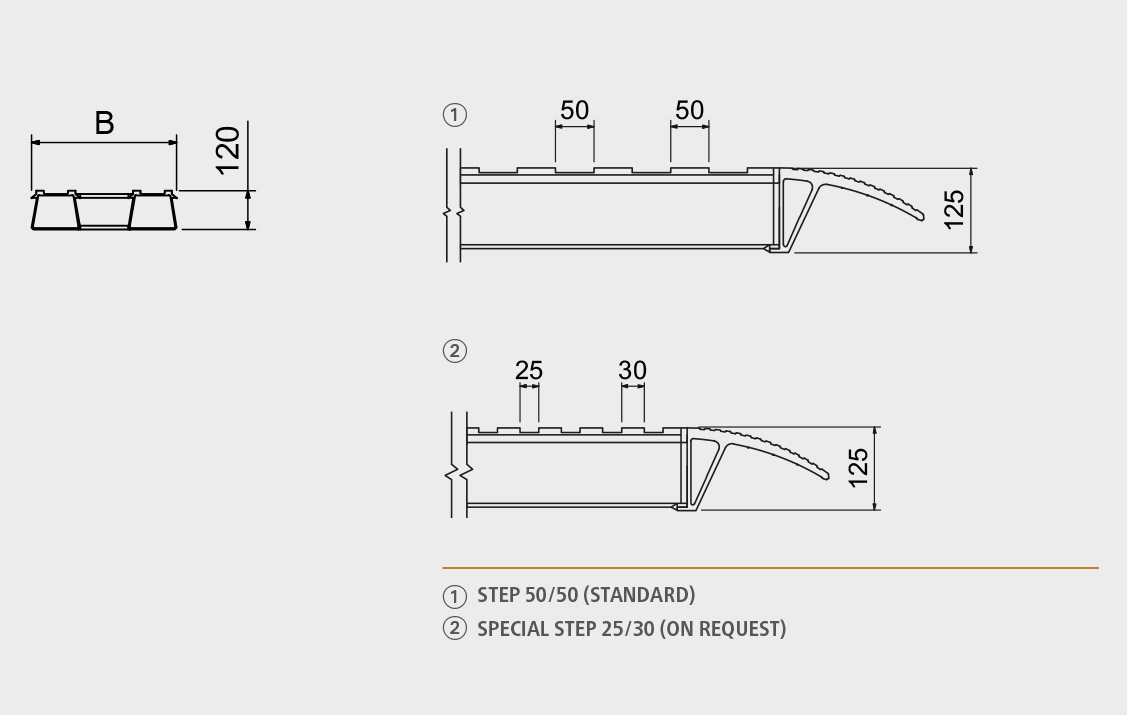

To meet the requirements of people who need to move vehicles with very heavy loads safely, Metalmec has designed this range of products which, together with the profiles used and the mechanical processes implemented in their production, ensure excellent performance. The range comes milled in 50/50 mm steps as standard and is particularly suitable for moving heavy vehicles with steel tracks. On request, the product can be milled in short 25/30 mm steps should the user wish to move heavy vehicles with solid rubber wheels. Available in various widths and with different types of head connections, they are particularly valued by manufacturers of heavy trailers as they are perfectly suited to their needs. The range is made without raised edges and the product is supplied with the required anchoring chains.

Product Sectors:

M120F

Head Types

1

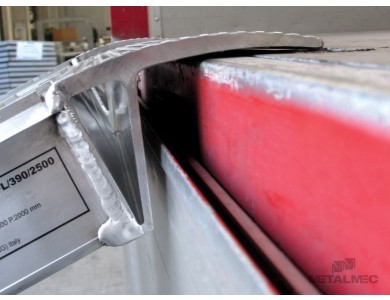

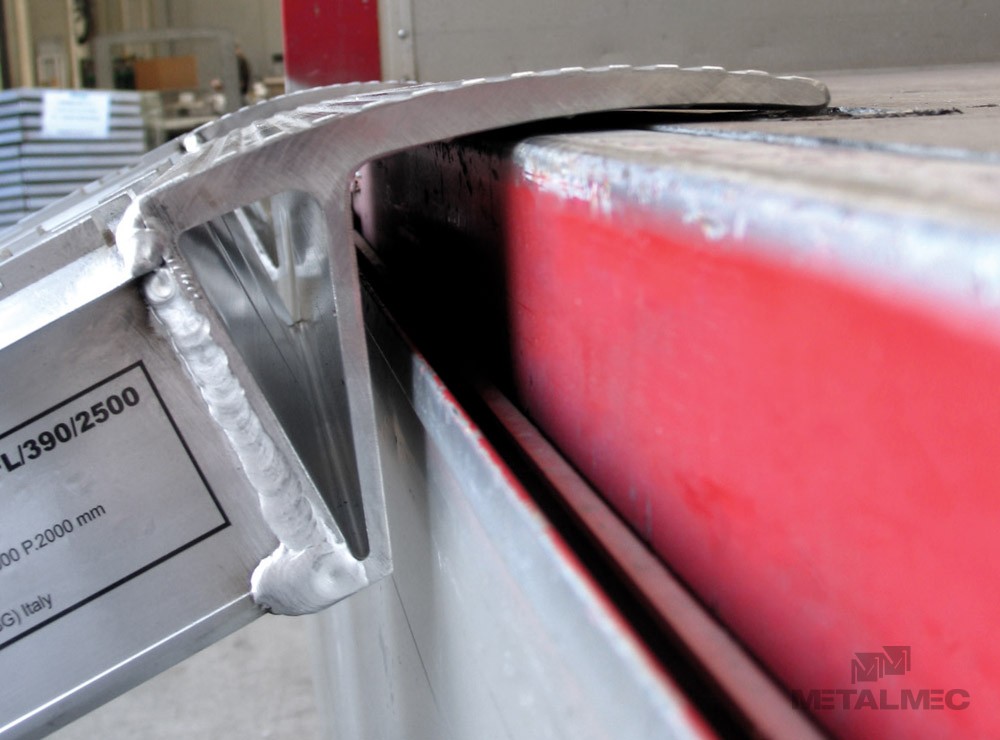

Standard Head (L)
Standard Head (L)
2
Head with hook (G) (on request)
Head with hook (G) (on request)
3
Head with support (A) (on request)
Head with support (A) (on request)
4
Head with tube (T) (on request)
Head with tube (T) (on request)
Loading capacity per pair kg
Model Item code Wheelbase 1000 mm Wheelbase 1500 mm Wheelbase 2000 mm Length mm External width B mm Weight per pair kg
M120F/390/1000MM122SL.39.10215002150021500100039039
M120F/390/1500MM122SL.39.15215002150021500150039052
M120F/390/2000MM122SL.39.20134102150021500200039067
M120F/390/2500MM122SL.39.2589401341018000250039081
M120F/390/3000MM122SL.39.306705894013410300039094
M120F/390/3500MM122SL.39.355365670589403500390107
M120F/390/4000MM122SL.39.404470536567054000390122
M120F/390/4500MM122SL.39.453830447053654500390136
M120F/390/5000MM122SL.39.503350383044705000390149
M120F/450/1000MM122SL.45.10290002900029000100045051
M120F/450/1500MM122SL.45.15290002900029000150045071
M120F/450/2000MM122SL.45.20201152900029000200045091
M120F/450/2500MM122SL.45.251341020115220002500450112
M120F/450/3000MM122SL.45.301005513410201153000450132
M120F/450/3500MM122SL.45.35804510055134103500450152
M120F/450/4000MM122SL.45.4067058045100554000450172
M120F/450/4500MM122SL.45.455745670580454500450192
M120F/450/5000MM122SL.45.505030574567055000450212

Anchoring Systems

Carabiner clip with steel chain (standard):

The steel chain must be hooked using the carabiner clip supplied to the loading bed, and must be inserted into the appropriate attachment system provided under the ramp’s driving surface.

Steel pin (on request):

A galvanised steel pin with a diameter of 14v mm and a 24-mm-diameter head can be inserted through the holes in the standard head connection of the ramp and the loading bed.

Handling Systems

Nylon handles (on request):

The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected. Recommended nylon handles for manual handling: 4 pcs each ramp. Recommended nylon handles for handling by lifting equipment: 2 pcs minimum each ramp.
