M120F/600

loading ramps

M120F/600

Max. loading capacity per pair: 35.000 Kg

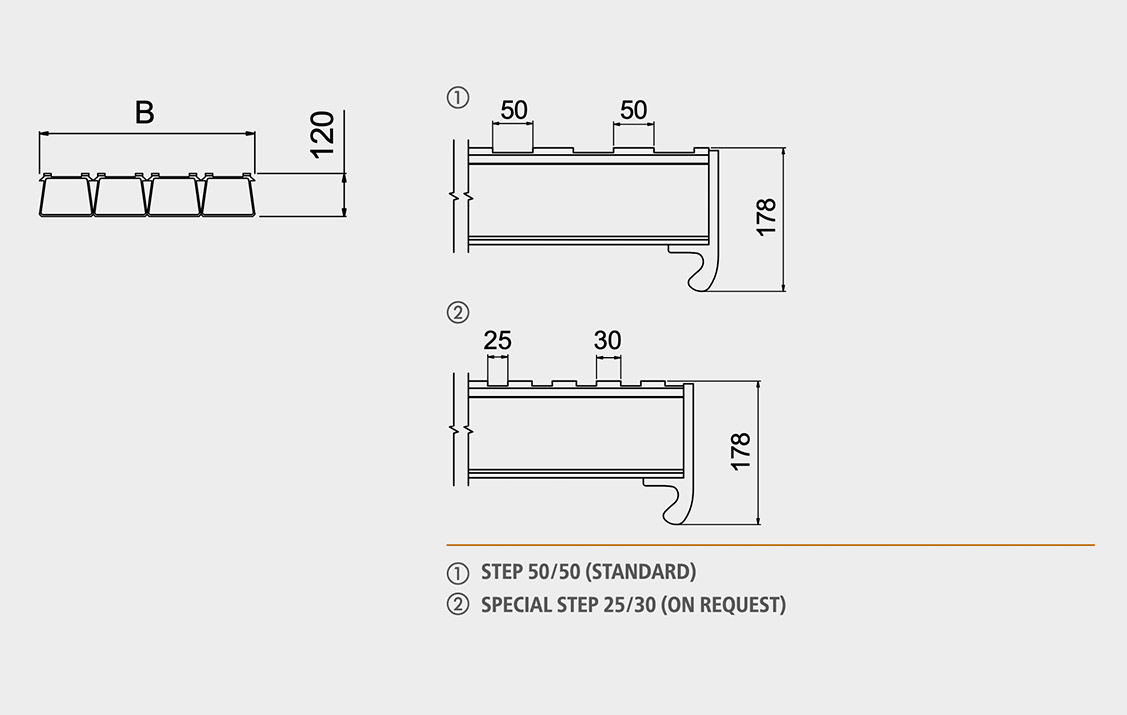

To meet the requirements of people who need to move vehicles with very heavy loads safely, Metalmec has designed this range of products which, together with the profiles used and the mechanical processes implemented in their production, ensure excellent performance. The range comes milled in 50/50 mm steps as standard and is particularly suitable for moving heavy vehicles with steel tracks. On request, the product can be milled in short 25/30 mm steps should the user wish to move heavy vehicles with solid rubber wheels. Available in various widths and with different types of head connections, they are particularly valued by manufacturers of heavy trailers as they are perfectly suited to their needs. The range is made without raised edges and the product is supplied with the required anchoring chains.

Product Sectors:

M120F/600

Head Types

1
HEAD WITH SUPPORT (A) (STANDARD)
HEAD WITH SUPPORT (A) (STANDARD)
2
HEAD WITH HOOK (G) (ON REQUEST)
HEAD WITH HOOK (G) (ON REQUEST)
3
Head with tube (T) (on request)
Head with tube (T) (on request)
Loading capacity per pair kg
Model Item code Wheelbase 1000 mm Wheelbase 1500 mm Wheelbase 2000 mm Length mm External width B mm * Weight per pair kg
M120F/600/1000MM122SA.60.10350003500035000100060067
M120F/600/1500MM122SA.60.15350003500035000150060094
M120F/600/2000MM122SA.60.20 2300035000350002000600120
M120F/600/2500MM122SA.60.251600025000350002500600147
M120F/600/3000MM122SA.60.301180015000230003000600173
M120F/600/3500MM122SA.60.35980011700163003500600200
M120F/600/4000MM122SA.60.4080009700130004000600227
M120F/600/4500MM122SA.60.456900800098004500600253
M120F/600/5000MM122SA.60.50 5900680082005000600280

* With hook head-connection (G) the external width (B) is 630mm

Anchoring Systems

Carabiner clip with steel chain (standard):

The steel chain must be hooked to the loading bed using the carabiner clip supplied, and must be inserted into the appropriate attachment system provided under the ramp's driving surface.

Handling Systems

Nylon handles (on request):

The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected.
