walkways
MPP
Max. loading capacity:
400 kg/m²

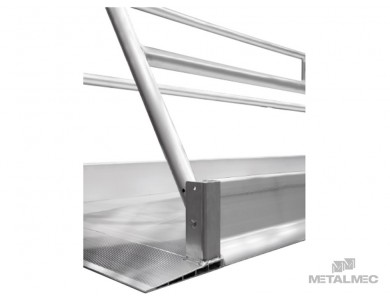

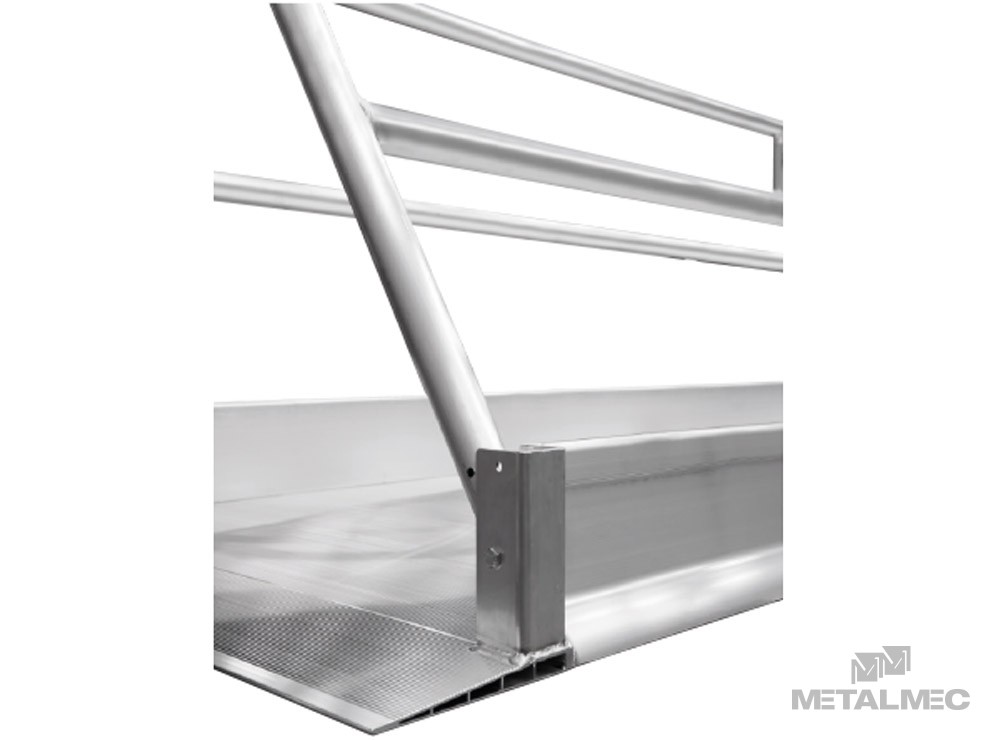

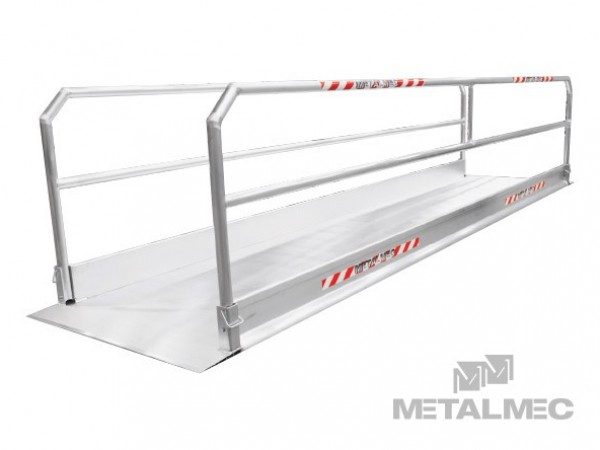

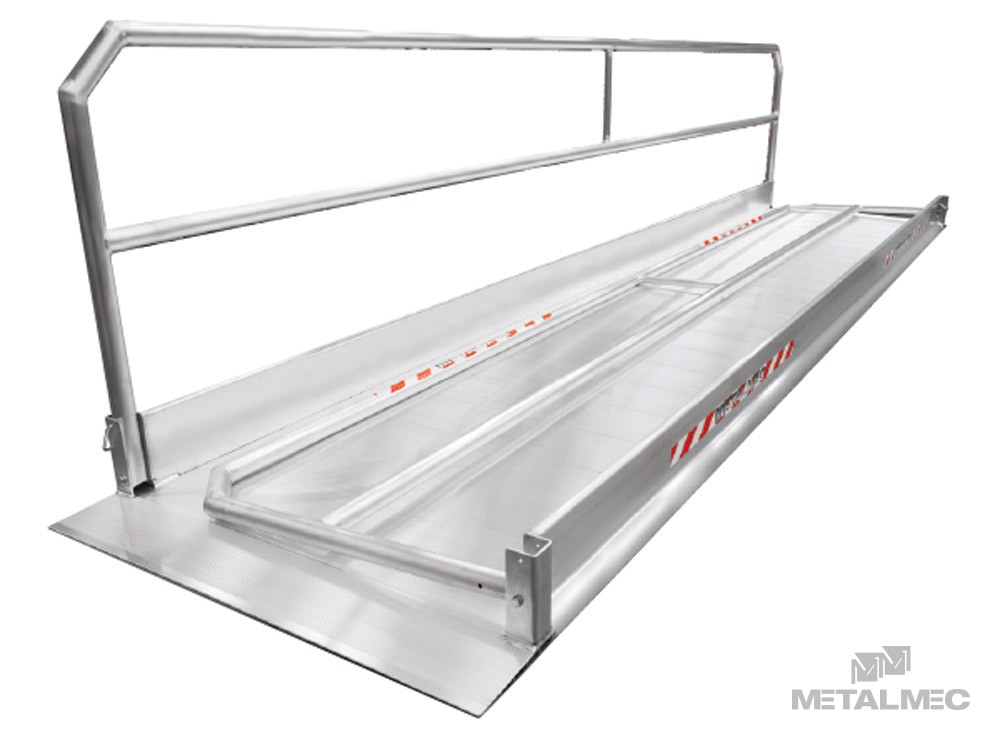

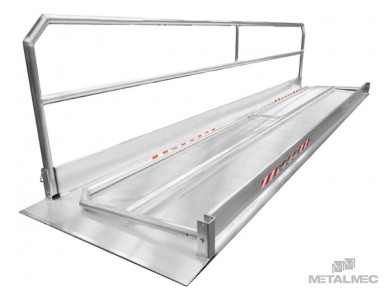

This range of walkways with handrails, made using special extruded aluminium profiles, allows people to overcome architectural barriers such as trench pits. Equipped with a non-slip transit surface, folding handrails and safety footstops, they are particularly suitable for horizontal use.
Product Sectors:

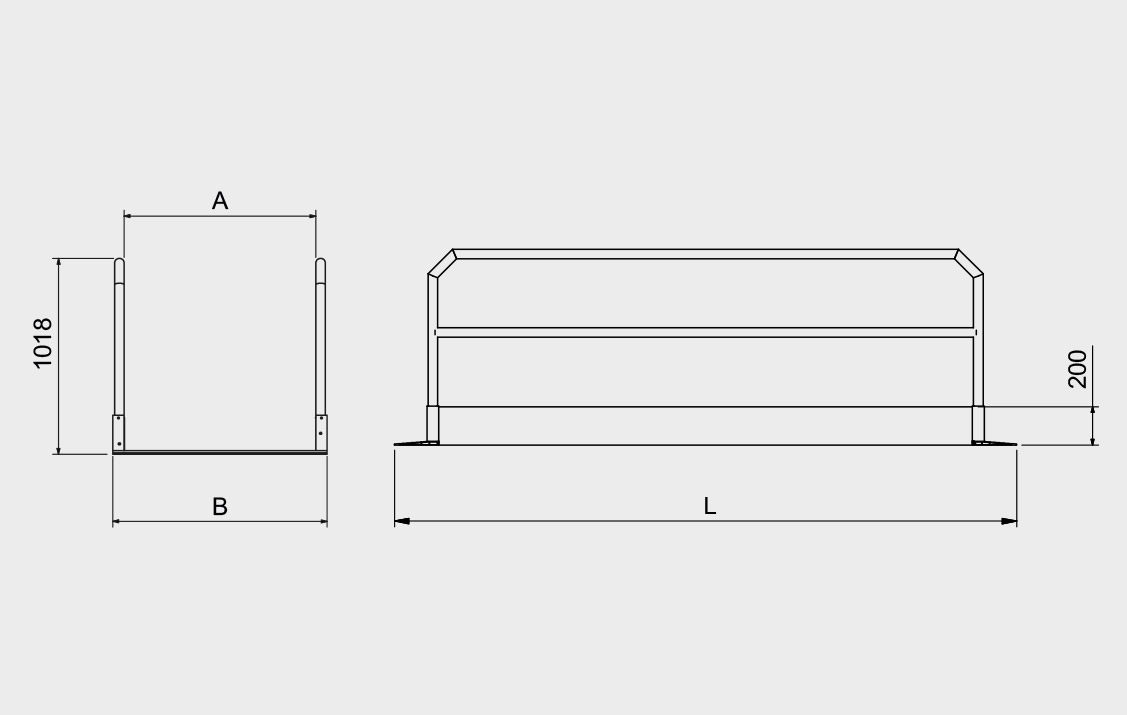

| Model | Item code | Loading capacity kg/m² | Length L mm | Internal width A mm | External width B mm | Max. trench width mm | Weight per piece kg |
|---|---|---|---|---|---|---|---|
| MPP12/10 | MM350B0.10.12 | 400 | 1260 | 1000 | 1120 | 600 | 34 |
| MPP16/10 | MM350B0.10.16 | 400 | 1660 | 1000 | 1120 | 1000 | 43 |
| MPP22/10 | MM350B0.10.22 | 400 | 2260 | 1000 | 1120 | 1600 | 56 |
| MPP26/10 | MM350B0.10.26 | 400 | 2660 | 1000 | 1120 | 2000 | 64 |
| MPP32/10 | MM350B0.10.32 | 400 | 3255 | 1000 | 1120 | 2600 | 77 |
| MPP40/10 | MM350B0.10.40 | 400 | 4055 | 1000 | 1120 | 3400 | 94 |
| MPP50/10 | MM350B0.10.50 | 400 | 5055 | 1000 | 1120 | 4400 | 115 |
| MPP60/10 | MM350B0.10.60 | 400 | 6055 | 1000 | 1120 | 5400 | 136 |
