pedestrian ramps
MPPI
Max. loading capacity:
400 kg/m²
This range of pedestrian ramps with handrails, made using special extruded aluminium profiles, are ideal in various contexts, from private residential use to public applications. They allow people (particularly wheelchair users) to overcome various architectural barriers such as long staircases and very high steps. They are equipped with an non-slip transit surface, folding handrails and safety footstops. In addition, the particular shapes of the bottom end and the head allow the user to adjust the ramp to a wide range of slopes, depending on the required application.
Product Sectors:

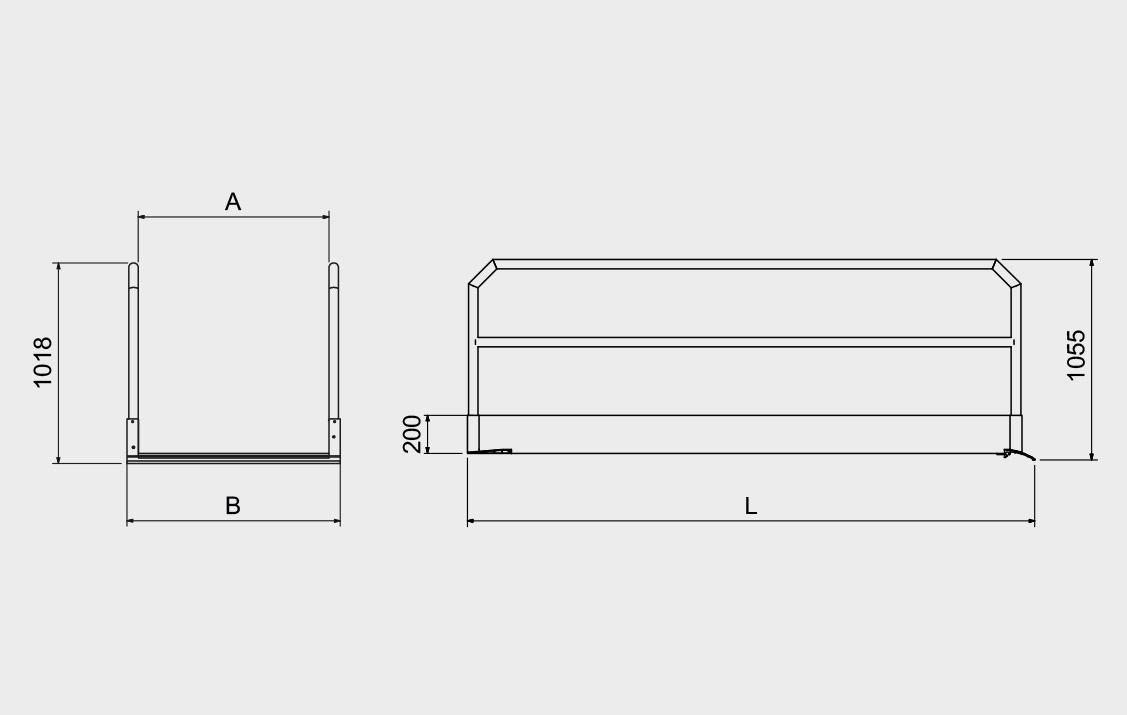

| Model | Item code | Loading capacity kg/m² | Length L mm | Internal width A mm | External width B mm | Weight per piece kg |
|---|---|---|---|---|---|---|
| MPPI10/10 | MM360BL.10.10 | 400 | 990 | 1000 | 1120 | 32 |
| MPPI14/10 | MM360BL.10.14 | 400 | 1390 | 1000 | 1120 | 41 |
| MPPI20/10 | MM360BL.10.20 | 400 | 1990 | 1000 | 1120 | 54 |
| MPPI24/10 | MM360BL.10.24 | 400 | 2390 | 1000 | 1120 | 62 |
| MPPI30/10 | MM360BL.10.30 | 400 | 2990 | 1000 | 1120 | 75 |
| MPPI38/10 | MM360BL.10.38 | 400 | 3790 | 1000 | 1120 | 92 |
| MPPI48/10 | MM360BL.10.48 | 400 | 4790 | 1000 | 1120 | 114 |
| MPPI58/10 | MM360BL.10.58 | 400 | 5790 | 1000 | 1120 | 136 |
