bridge access ramps
MBAP
Max. loading capacity:
2000 kg
Made with high-resistant aluminium profiles and with a special non-slip transit surface, this range of bridge access ramps allows wheeled equipment such as handpushed trolleys, manual and electric pallet trucks to overcome obstacles on the ground, like pipes and cable ducts. This type of ramps is not suitable for forklifts. Thanks to its lightness, the product can be quickly and easily moved to another position, according to the needs of use. Upon request, it is possible to manufacture special versions with different dimensions and with maximum loading capacity of 2000 kg at 1000 mm wheelbase.
Product Sectors:

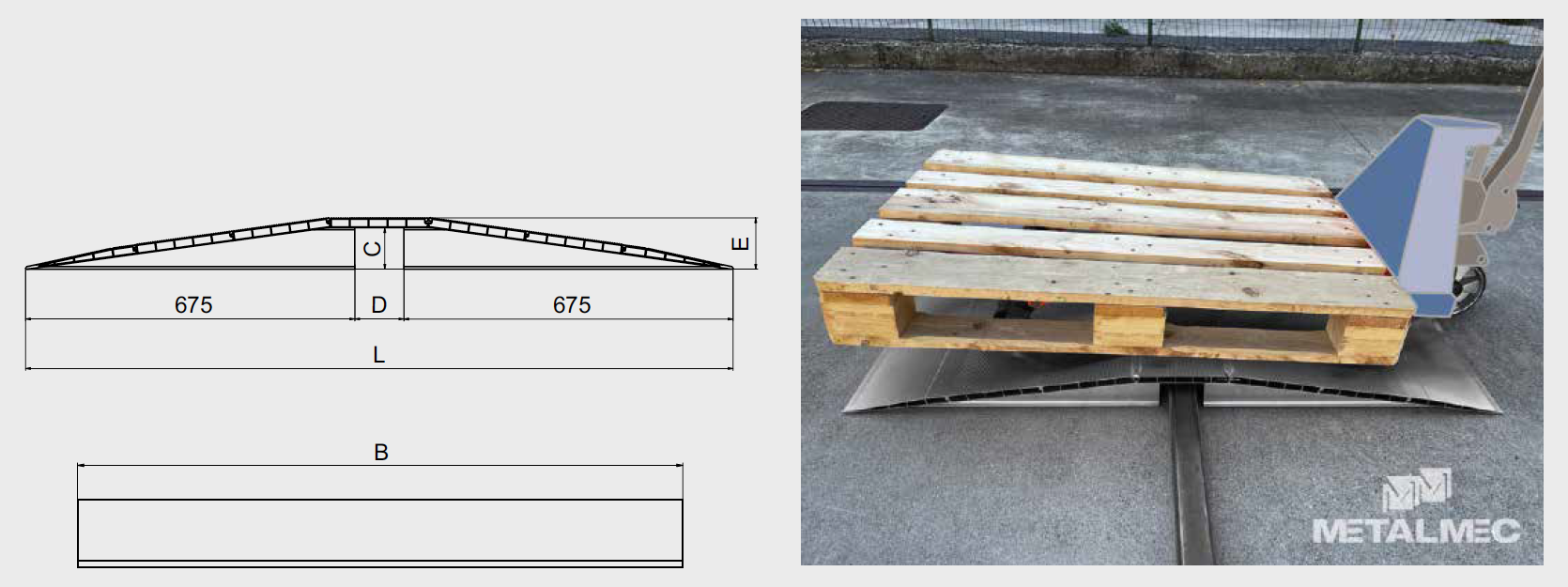

| Model | Item code | Loading capacity kg with 1000 mm wheelbase | Length L* mm | Width B* mm | Height C* mm | D* mm | E* mm | Weight kg |
|---|---|---|---|---|---|---|---|---|
| MBAP2 | MM551S0.95.14 | 1000 | 1450 | 950 | 85 | 100 | 105 | 19 |
* Dimensions can be modified according to your load requirements. Please contact us for further details.
