loading bridges
MPL
Max. loading capacity:
1.300 Kg

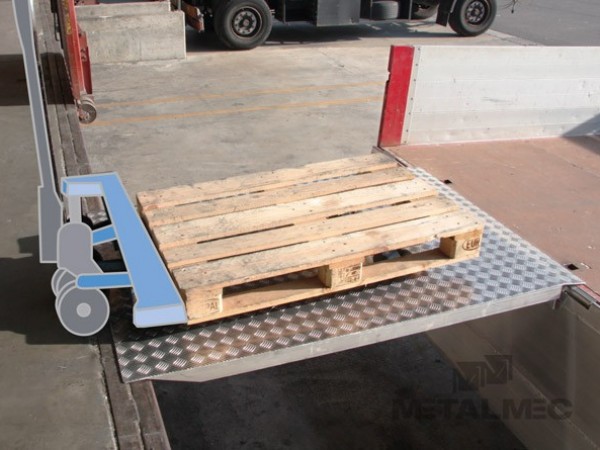

The removable loading bridges, made with non-slip aluminium quintet tread plates welded together, are particularly suitable for logistics applications when there is a need to move hand-pushed trolleys and manual pallet trucks from the dock of the logistics platform to the loading bed of the vehicle and vice versa. Its light weight means that the product can be quickly and easily moved to another position as required. The standard range allows the user to overcome height differences of up to 230 mm.
Product Sectors:

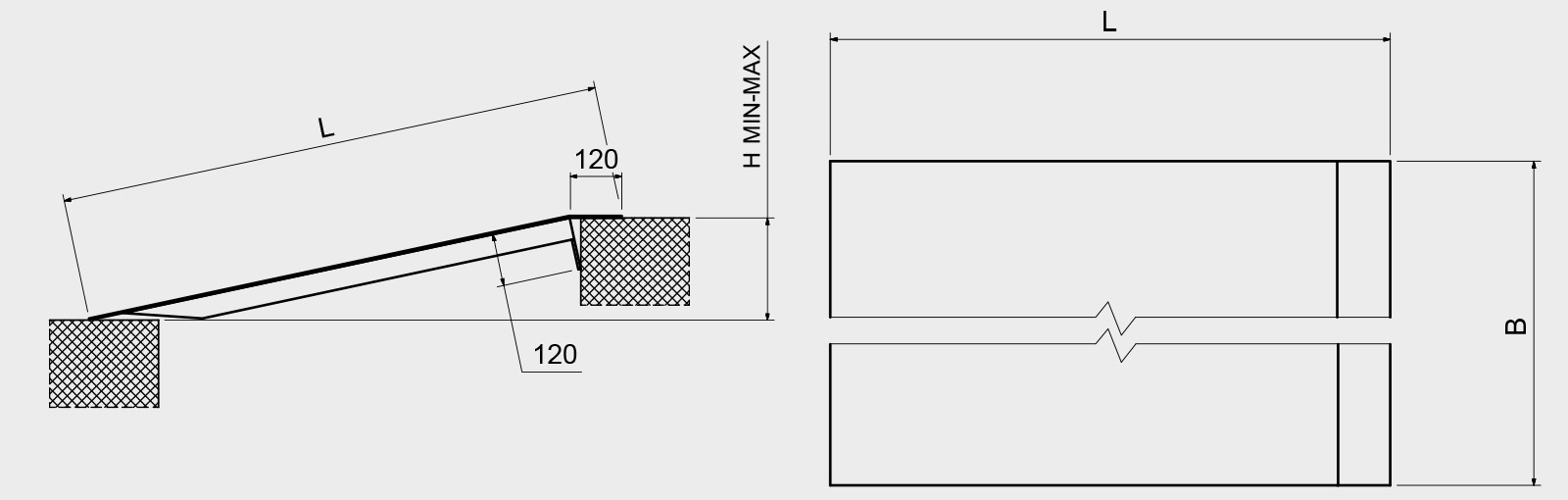

| Model | Item code | Max. loading capacity kg | Length L mm | Width B mm | Min./max. loading height mm | Weight kg |
|---|---|---|---|---|---|---|
| MPL0750L | MM570S0.12.07 | 610 | 750 | 1250 | 0 / 90 | 13 |
| MPL1000L | MM570S0.12.10 | 610 | 1000 | 1250 | 50 / 120 | 17 |
| MPL1200L | MM570S0.12.12 | 610 | 1200 | 1250 | 60 / 150 | 20 |
| MPL1500L | MM570S0.12.15 | 610 | 1500 | 1250 | 80 / 190 | 25 |
| MPL1800L | MM570S0.12.18 | 610 | 1800 | 1250 | 100 / 230 | 30 |
| MPL0750H | MM580S0.12.07 | 1300 | 750 | 1250 | 0 / 90 | 20 |
| MPL1000H | MM580S0.12.10 | 1300 | 1000 | 1250 | 50 / 120 | 27 |
| MPL1200H | MM580S0.12.12 | 1300 | 1200 | 1250 | 60 / 150 | 33 |
| MPL1500H | MM580S0.12.15 | 1300 | 1500 | 1250 | 80 / 190 | 41 |
| MPL1800H | MM580S0.12.18 | 1300 | 1800 | 1250 | 100 / 230 | 49 |
