This range of removable loading bridges has been created with special extruded aluminium profiles that have a knurled, non-slip surface. The bridges are suitable for high-performance logistics applications which require the movement of electric pallet trucks and forklifts from the dock of the logistics platform to the loading bed of the vehicle and vice versa. The side handles, fitted as standard, mean that the product can be quickly and easily moved to another position as required. The standard range allows vehicles with a loading capacity of up to 5000 kg to overcome height differences of up to 120 mm.

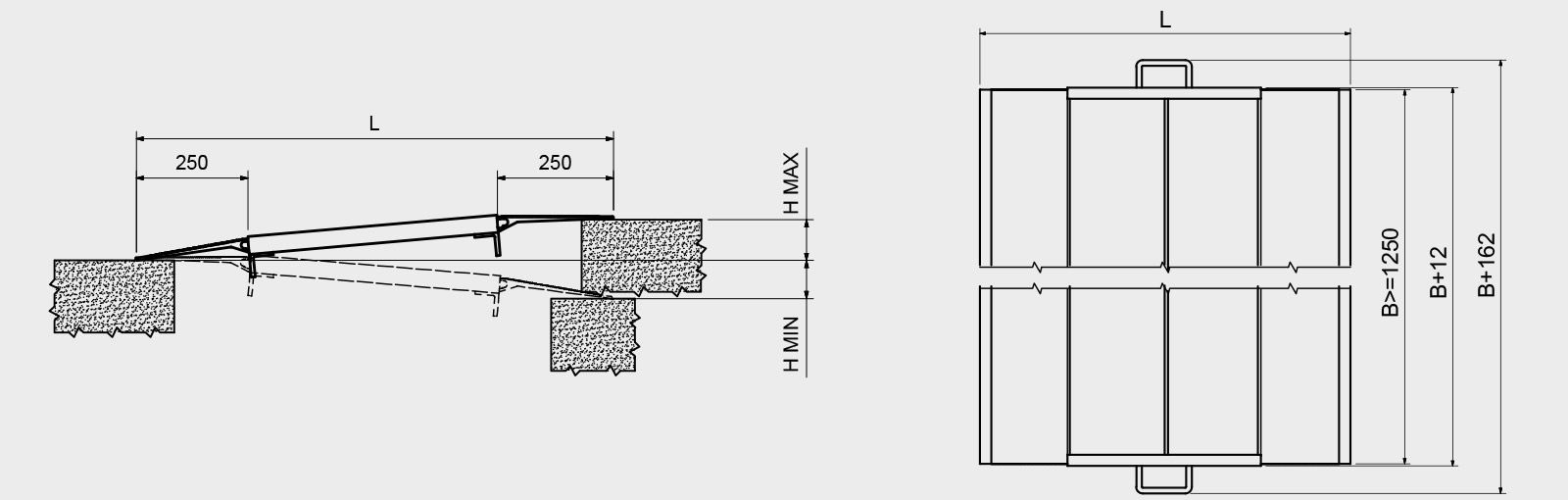

Model | Item code | Max. loading capacity kg | Length L mm | Width B* mm | Min./max. loading height mm | Weight kg |
---|---|---|---|---|---|---|
MS0302TL/625/1250 | MM650S0.12.06 | 3420 | 627 | 1250 | -75 / 75 | 22 |
MS0302TL/750/1250 | MM650S0.12.07 | 2895 | 752 | 1250 | -90 / 90 | 24 |
MS0302TL/875/1250 | MM650S0.12.08 | 2510 | 877 | 1250 | -105 / 105 | 28 |
MS0302TL/1000/1250 | MM650S0.12.10 | 2210 | 1002 | 1250 | -120 / 120 | 32 |
MS0302TL/625/1500 | MM650S0.15.06 | 3420 | 627 | 1500 | -75 / 75 | 26 |
MS0302TL/750/1500 | MM650S0.15.07 | 2895 | 752 | 1500 | -90 / 90 | 29 |
MS0302TL/875/1500 | MM650S0.15.08 | 2510 | 877 | 1500 | -105 / 105 | 33 |
MS0302TL/1000/1500 | MM650S0.15.10 | 2210 | 1002 | 1500 | -120 / 120 | 38 |
* Minimum 1250 mm
Other dimensions available on request.
