wedge access ramps
SHL
The SHL range, made in length 1.5mt and width 2.2mt, has been specially designed to allow the overcoming of height differences from 100 to 300mm, such as containers, guaranteeing the maximum safety of transit of vehicles thanks to its width. The SHL1 and SHL2 models are characterized by a special non-slip
surface, certified R13, and are suitable for loading manual trucks, manual and electric pallet trucks.
The SHL8 model is made of high-strength profiles and is designed to allow the loading of heavier vehicles, such as forklifts or operating machines with rubber
wheels or tracks. All models are equipped with a standard head-connection that lays directly on the loading surface. The range is only available without raised edges.
Product Sectors:
| Loading capacity per pair kg | |||||||
|---|---|---|---|---|---|---|---|

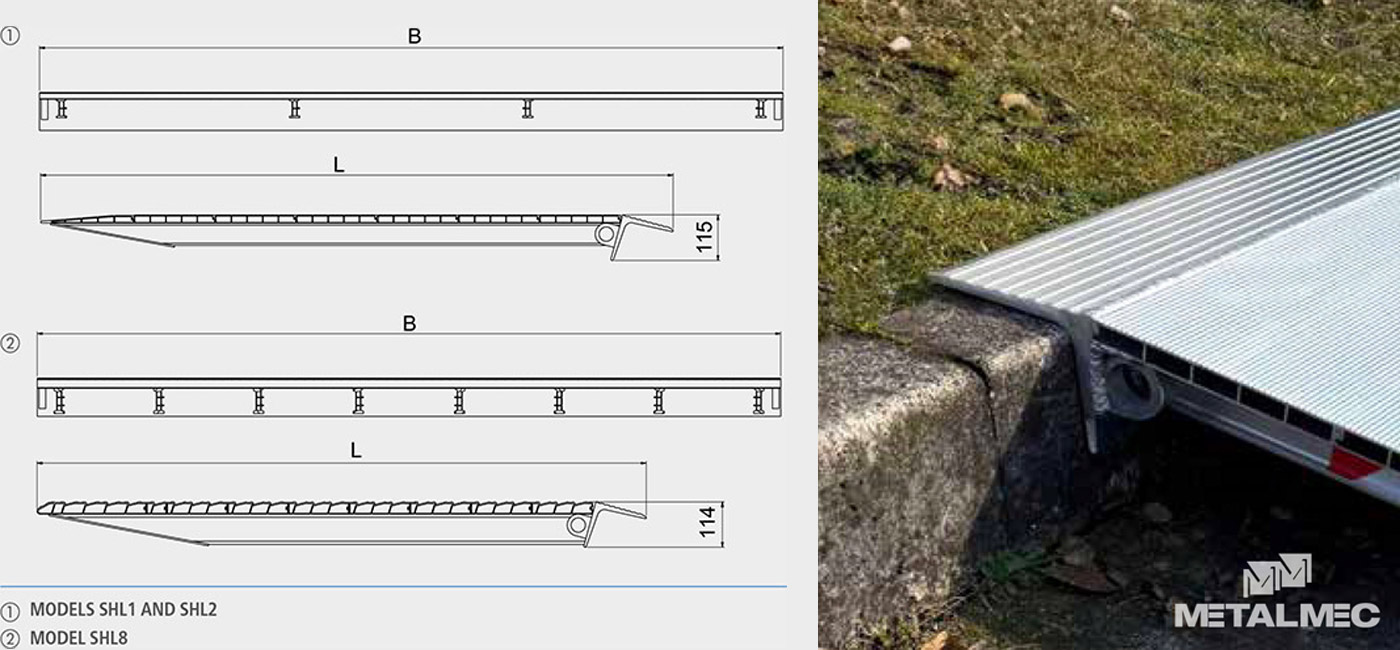

| Model | Item code | Wheelbase 1000 mm | Wheelbase 1500 mm | Length L mm | External width B mm | Min./max. loading height | Weight kg |
| SHL1/100 | MM530SL.0100 | 1000 | - | 1562 | 2200 | 100 / 119 | 57 |
| SHL1/120 | MM530SL.0120 | 1000 | - | 1562 | 2200 | 120 / 139 | 58 |
| SHL1/140 | MM530SL.0140 | 1000 | - | 1562 | 2200 | 140 / 159 | 58 |
| SHL1/160 | MM530SL.0160 | 1000 | - | 1561 | 2200 | 160 / 189 | 58 |
| SHL1/190 | MM530SL.0190 | 1000 | - | 1561 | 2200 | 190 / 219 | 58 |
| SHL1/220 | MM530SL.0220 | 1000 | - | 1561 | 2200 | 220 / 259 | 58 |
| SHL1/260 | MM530SL.0260 | 1000 | - | 1560 | 2200 | 260 / 300 | 58 |
| SHL2/100 | MM520SL.0100 | 2000 | - | 1562 | 2200 | 100 / 119 | 66 |
| SHL2/120 | MM520SL.0120 | 2000 | - | 1562 | 2200 | 120 / 139 | 66 |
| SHL2/140 | MM520SL.0140 | 2000 | - | 1562 | 2200 | 140 / 159 | 66 |
| SHL2/160 | MM520SL.0160 | 2000 | - | 1561 | 2200 | 160 / 189 | 66 |
| SHL2/190 | MM520SL.0190 | 2000 | - | 1561 | 2200 | 190 / 219 | 67 |
| SHL2/220 | MM520SL.0220 | 2000 | - | 1561 | 2200 | 220 / 259 | 67 |
| SHL2/260 | MM520SL.0260 | 2000 | - | 1560 | 2200 | 260 / 300 | 67 |
| SHL8/140 | MM510SL.0140 | - | 8000 | 1503 | 2200 | 140 / 159 | 88 |
| SHL8/160 | MM510SL.0160 | - | 8000 | 1503 | 2200 | 160 / 179 | 89 |
| SHL8/180 | MM510SL.0180 | - | 8000 | 1503 | 2200 | 180 / 99 | 89 |
| SHL8/200 | MM510SL.0200 | - | 8000 | 1503 | 2200 | 200 / 219 | 89 |
| SHL8/220 | MM510SL.0220 | - | 8000 | 1503 | 2200 | 220 / 239 | 90 |
| SHL8/240 | MM510SL.0240 | - | 8000 | 1503 | 2200 | 240 / 269 | 90 |
| SHL8/270 | MM510SL.0270 | - | 8000 | 1503 | 2200 | 270 / 300 | 90 |
Anchoring Systems
The steel chain must be hooked to the loading bed using the carabiner clip supplied, and must be inserted into the appropriate attachment system provided under the ramp's driving surface.
Handling Systems
The product can be supplied with robust nylon handles to facilitate handling. Available in lengths of 30 cm and 60 cm, according to the model of the product selected. Recommended nylon handles for manual handling: 4 pcs each event ramp. Recommended nylon handles for handling by lifting equipment: 2 pcs minimum each event ramp.
